Unveiling textile printing possibilities
Exceptional brilliant print quality
Four EPSON i3200 Print Heads
3200 nozzles per head, total 12800 nozzles
Fashions
T-shirts

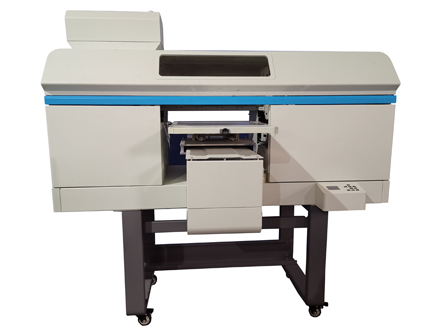

Itten T-Shirt Printer Technical Specifications | |
Model | iTTEN PF0547-T |
Printing Size | W380 X D450mm |
Print Head | Four EPSON i3200 Print Heads, 2 Heads for White Ink + 2 Heads for Color Ink |
Maximum Media Thickness | 10mm |
Platform Lifting Height | 10mm |
Printing Methold | White bottoming/White and color print concurrently |
Ink | High Density Pigment ink for garment |
White + C/M/Y/K | |
Ink Tank Volume | Standard: 3L/ink tank, big ink tank(11L/tank) system optional |
Printing Resolution | 720X1200dpi / 4PASS |
1440X1200dpi / 8PASS | |
Printing Speed | 800~1200 PCS（Dark Clothes）/4PASS |
(*Print in A4 format，4PASS，quick replace platform optional） | |
600~1000PCS（Dark Clothes）/8PASS | |
(*Print in A4 format，8PASS，quick replace platform optional ） | |
RIP Software | TexPrint, Neostampa, MainTop |
Power | 110-220V 50-60HZ 250W |
Operation System | win7/win 10 64 bit system |
Interface | USB2.0 |
Standard Configulation | White ink stiring and recycling system, Leg stand |
Machine Size (with stand) | W1760 X D1280 X H1770mm |
Environment | Temperature: 15-30ºC，Humidity：45-70% |
